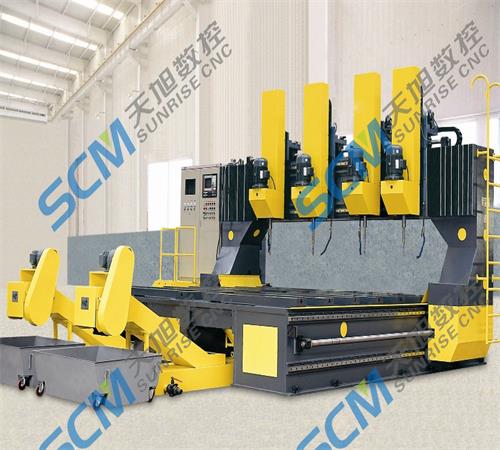

TPLD Series Multi - Spindle Normal Speed CNC Drilling Machine
2016-6-16 16:41:43
Applicable Industry£º
Used for the drilling processing for tube plate, clapboard and flange, in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc.
Product composition:
Ø Worktable for square and round work-piece
Ø Thickened and enhanced movable gantry
Ø Drill head
Ø Electric cabinet with CNC system
Ø Hydraulic Station
Ø Automatic chip conveyor with chip carriage
Ø Automatic recycling cooling water system
Main Description:
Ø Function: Drilling, Tapping, Milling, Chamfering and so so.
Ø Work-piece: Steel Plates, Flanges, Tube Sheets, Pressure Vessels and so on.
Ø High precision£º¡À0.1mm
Technical Parameters £º
|
Model |
TPLD4040 |
TPLD5050 | ||
|
size of work piece (mm) |
Max. hole distance L¡ÁW (mm) |
4000¡Á4000 |
5000¡Á5000 | |
|
Max. thickness (mm) |
200 | |||
|
Worktable |
Width/distance of T notch |
28/500 |
28/550 | |
|
Drilling spindle |
Quantity |
One or more (By customers¡¯ request) | ||
|
Max. diameter of drilling |
¦Õ50mm | |||
|
Morse taper of spindle |
#4 | |||
|
Rotating speed (rpm) |
120£480 | |||
|
Max. feed stroke (mm) |
350 | |||
|
Feeding speed (mm/min) |
0-4000 | |||
|
Motor power (kW) |
5.5 | |||
|
Positioning precision |
X¡¢Yaxis |
¨Q0.1/(È«³¤) | ||
|
Re-positioning precision |
X¡¢Yaxis |
¨Q0.1 | ||
|
Motor power (kW) |
Servo motors |
Xaxis |
2 | |
|
Yaxis |
1.5 | |||
|
Zaxis |
1 | |||
|
Motor for swarf conveyor |
0.75 | |||
|
Motor for cooling pump |
0.25 | |||
|
Type of chip-conveyor |
Chain-plate type | |||
|
Quantity of chip-conveyor |
2 | |||
|
Chip-removal speed (m/min) |
1 | |||
|
CNC system |
Spain FAGOR8055 CNC system | |||
|
Net weight (kg) |
¡Ö30000 |
¡Ö40000 | ||
|
Overall dimensions(L¡ÁW¡ÁH) (mm) |
7280¡Á7050¡Á3200 |
8280¡Á8050¡Á3200 | ||
|
Other models can be made by customers¡¯ request. | ||||
Product Feature:
1. Servo slide drilling unit heads, with the function of drilling holes, reaming, chamfer angle, milling of groove, can work together, and also work separately
2. Automatically find pot to drill holes in X, Y axis,, Spindle rotation speed and feed velocity are stepless adjustment.
3. T-groove is set on lathe bed, using pressure plate to clamp workpiece
4. To seek work piece center in hand-operated wheel, thimble
5. CNC, PLC systems, CRT display,
6. Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing.
7. Automatic chip removal, coolant circulation cooling
8. Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad
9. First choice equipment of tube plate drilling in heat exchange, chemical & mechanical industry.
