TPHD Series Multi - Spindle CNC High Speed Drilling Machine
2016-6-16 16:45:44
Applicable Industry£º
Used for the drilling processing for tube plate, clapboard and flange, in petrochemical, boiler, and wind power flange industries, also for joint plates in building, bridge, iron tower, etc.
Product composition:
Ø Worktable for square and round work-piece
Ø Thickened and enhanced movable gantry

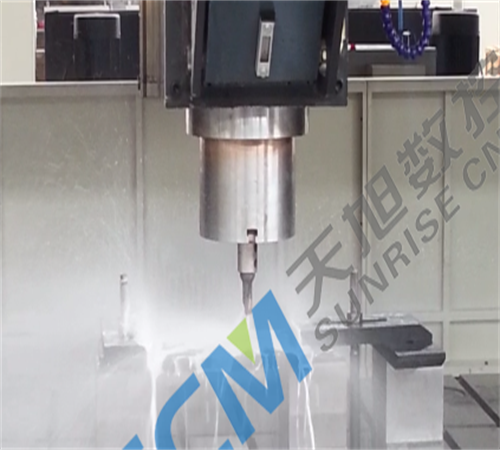

Ø High speed drill head
Ø Electric cabinet with CNC system
Ø Hydraulic Station
Ø Automatic chip conveyor with chip carriage
Ø Automatic recycling cooling water system
Main Description:
Ø Function: Drilling, Tapping, Milling, Chamfering and so so.
Ø Work-piece: Steel Plates, Flanges, Tube Sheets, Pressure Vessels and so on.
Ø High precision£º¡À0.1mm
Technical Parameters £º
|
Model |
TPHD4040 |
TPHD5050 | ||
|
Max size of work piece (mm) |
Max. hole distance L¡ÁW (mm) |
4000¡Á4000 |
5000¡Á5000 | |
|
Max. thickness (mm) |
200 | |||
|
Worktable |
Width/distance of T notch |
28/500 |
28/550 | |
|
Drilling spindle |
Quantity |
One or more (By customers¡¯ request) | ||
|
Max. diameter of drilling |
¦µ50mm | |||
|
Taper hole of spindle |
BT50 | |||
|
Rotating speed (rpm) |
120~480 Stepless adjustment | |||
|
Max. feed stroke (mm) |
350 | |||
|
Feeding speed (mm/min) |
0~4000 Stepless adjustment | |||
|
Motor power (kW) |
5.5 | |||
|
Positioning precision |
X¡¢Y axis |
¨Q0.1/ full length | ||
|
Re-positioning precision |
X¡¢Y axis |
¨Q0.1 | ||
|
Motor power (kW) |
Servo motors |
X axis |
2 | |
|
Y axis |
1.5 | |||
|
Z axis |
1 | |||
|
Motor for swarf conveyor |
0.75 | |||
|
Motor for cooling pump |
0.25 | |||
|
Type of chip-conveyor |
Chain-plate type | |||
|
Quantity of chip-conveyor |
2 | |||
|
Chip-removal speed (m/min) |
1 | |||
|
CNC system |
Spain FAGOR8055 CNC system | |||
|
Net weight (kg) |
¡Ö30000 |
¡Ö40000 | ||
|
Overall dimensions(L¡ÁW¡ÁH) (mm) |
7280¡Á7050¡Á3200 |
8280¡Á8050¡Á3200 | ||
Product Feature:
1. Heavy-load linear roller guide pairs are equipped on two sides of the machine bed respectively. The longitudinal movement of the gantry¡¯s two sides is driven synchronously via AC servo motor and precise ballscrew pair of big pitch.
2. Two movable slides are equipped on the cross beam of gantry. The sliders are guided by two linear roller guide pairs and driven by AC servo motor and precise ballscrew pair of big pitch respectively.
3. The slides on the cross beam are equipped with vertical CNC feeding ram-type drilling spindle, which adopts special conversion motor with heavy load for spindle. The motor drives the spindle via synchronous belt. The drilling spindle adopts<st1:country-region w:st="on">Taiwan</st1:country-region>precision spindle (innercooling) with disk spring automatic broach mechanism, hydraulic cylinder loosing cutter, very convenient to change shank.
4. The machine is equipped with hydraulic system to finish the hydraulic balance of vertical ram and hydraulic cutter loosing of spindle.
5. It adopts FAGOR8055 CNC system of<st1:country-region w:st="on">Spain</st1:country-region>, equipped with RS232 interface and LCD screen. The automatic programming provided can not only generate processing programs automatically, but also preview hole position before drilling.
6. It is equipped with chain-plate type automatic chip-conveyor and chip collection trolley. The cooling system is equipped with paper filer, high-pressure innercooling pump and low-pressure outercooling pump, which are used for innercooling or outercooling of cutter.
