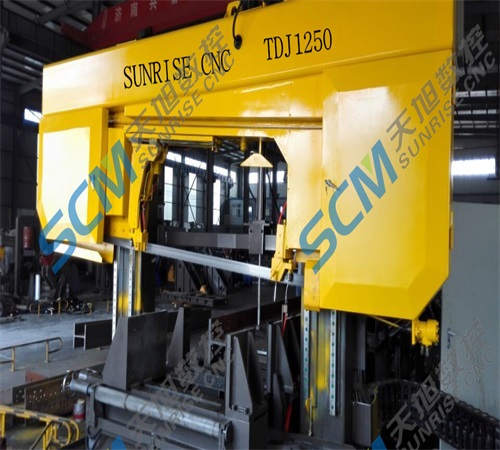

TDJ Series CNC Angle Rotation Band Sawing Machine
2016-6-16 16:06:23
Applicable Industry£º
The machine is mainly used to cut H-beams, channels, pipes and other profiles etc.
Main description:
Ø Work-piece: H U beams
Ø Functions: Sawing
Ø Feeding mode: Automatic NC feeding carriage --- high feeding speed ,high precision
Ø Rotation sawing: Automatic 0~45¡ã rotating
Ø Laser alignment function, the precision of sawing will be more higher.
Technical Parameters£º
|
Model |
TDJ1000 |
TDJ1250 |
|
Dimensions for H-beam(mm) (without rotation angle) (web height X Flange width) |
(Max.)1000X500 |
Max.)1250X600 |
|
(Min.)200 X 75 | ||
|
Saw blade size (mm) |
T:1.6 W:54 L:8500 |
T:1.6 W:67 L:9300 |
|
Saw blade linear speed(m/min) |
20 ~ 100 | |
|
Table height (mm) |
800 | |
|
Feeding speed |
(Programmable control) | |
|
Rotation angle |
0¡ã~ 45¡ã | |
|
Host motor power (kW) |
11 |
15 |
|
Hydraulic motor power(kW) |
5.5 | |
|
Main clamping hydraulic motor power(ml/r) |
100 | |
|
Front clamping hydraulic motor power(ml/r) |
100 | |
|
Overall dimension of machine(mm) |
(Approx.) 4150X2300X3300 |
(Approx.) 4500X2300X3450 |
|
Total weight of machine(kg) |
(Approx.)9000 |
(Approx.)11000 |
Product Feature£º
1. The machine is mainly composed of sawing frame, worktable, vertical feeding device, vertical pressing device, rotation worktable, carriage for feeding workpiece, hydraulic system, cooling system and electric system etc.
2. The feeding speed can be adjusted automatically according to different section and also realize reciprocating saw.
3. High efficiency and high precision rotation angle positioning.
4. The machine is equipped with clamp carriage which can automatically identify the infeed length of H-beam,
which can get automatically control of all the process.
5. Use touch screen to input the dimension of the workpiece, the processing data can be shown and monitored
real-time.
6. Powerful sawing capacity is specially designed for processing different kinds of profiled bars in steel structure
industry.
