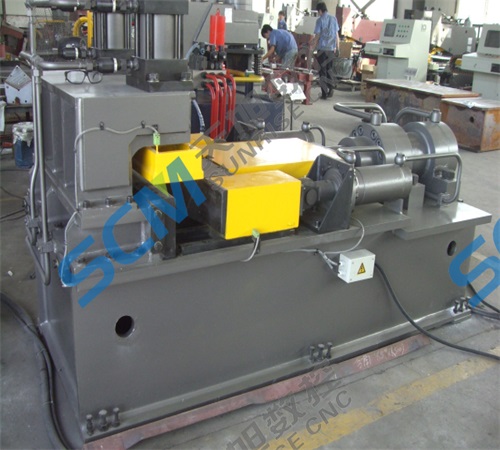

TKH1412 Hydraulic Angle Opening&Closing Machine
2016-6-15 14:13:34
Applicable Industry£ºUsed for angle opening & closing in the steel tower industry.
Product Feature
¡öEasy angle adjustment and indicated by scale range.
¡öAngle opening & closing mould adopts combined unit to conveniently replace & adjust it.
¡öSimultaneous angle opening & closing on the one machine, with small working area.
¡öThe linearity & flatness of finished products are accordance with GB2694.
¡öIts biggest opening & closing angle is 25¡ã, as for the length of opening & closing, we can manufacture moulds according to customers¡¯ request, its deforming length is 600mm. The machine has independent hydraulic station and electric control system, with simple structure, safe using, convenient & reliable.
SPECIFICATIONS
|
Model |
TKH1412 |
|
Angle size (mm) |
L40§ç40§ç3 ~ L140§ç140§ç12 |
|
Scope of opening & closing(¡ã) |
¡À5¡ã¡¢10¡ã¡¢15¡ã¡¢20¡ã¡¢25¡ã |
|
Length of opening & closing (mm) |
50¡¢100¡¢150¡¢200¡¢300¡¢350¡¢400¡¢450¡¢500¡¢550¡¢600 |
|
Working stroke (mm) |
200 |
|
Times of stroke (Min-1) |
10~12 |
|
Motor power (kW) |
15 |
|
Nominal pressure (kN) |
800 |
|
Overall dimensions L¡ÁW¡ÁH (mm) |
2546¡Á1295¡Á1515 |
