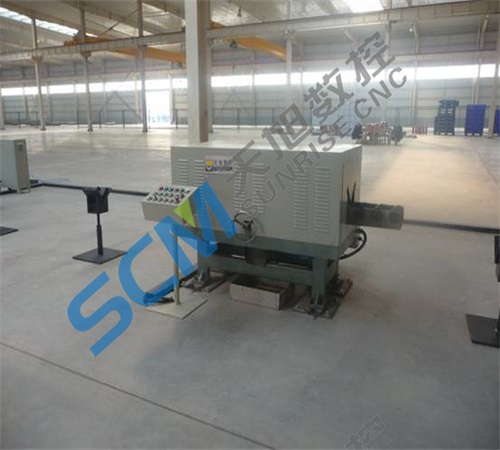

TQC200 Angle Hill Milling Machine
2016-6-16 13:12:48
Machine Usage & Characteristics:
1. The device uses high-speed milling for back and root of angle shoveling processing technology.
2. Greatly improving the shoveling production efficiency, ten times efficient than the traditional planer.
3. Easily operate, low requirement for the worker¡¯s operation level.
4. Greatly reducing the labor intensity, high degree of automatic machinery, it can continuously feed angle.
5. Compared with traditional planer which length of processing is restricted, the new machine makes the process more flexible. It is not necessary to use clamping device to make the process more convenience and more efficient.
6. The machine is easy to operate, flexible regulation and stable operation.
Specifications:
Model |
TQC200-2C |
TQC250-2C |
Processing Angle Size |
L40~L200 |
L63~L250x32 |
Processing Angle Length
|
Min. 300mm; Max. Without Limit |
Min. 350mm; Max. Without Limit |
Power-3phrase AC 380V50Hz |
13.4KW |
15KW |
Main Spindle Speed |
460r/Min |
450r/Min |
Spindle Axis Quantity |
Two |
Three |
Automatic Feeding Speed (Adjustable) |
100-500mm/Min |
100-500mm/Min |
Overall Dimension |
2000X2000X1200 Mm |
2650x1850x1750mm |
Machine Working Process:
1¡¢Adjust the shovel back depth. Directly input shovel back depth in the touch screen, press blade adjustment button, cutter head automatically adjusts to the chip position. According to the preset parameters, the machine will automatically calculate the cutting speed.
2¡¢Put angle in the machine.
3¡¢In automatic mode, press the cycle start button, the machine will automatically run.
4¡¢The same size Angle can be cutting continuously.
Steel Angle Shovel Back Depth & Cutting Tools Reference Table | |||
Backoff External Cooperate With Angle Steel Specification (Material) |
Main Material Fillet Radius |
Lining Angle Shovel Back Depth (1.5 Mm Gap) |
Recommend The Use Of Cutting Tools |
63 |
R7 |
4.4 |
R20 |
70 |
R8 |
4.8 |
R20 |
75 |
R9 |
5.2 |
R20 |
80 |
R9 |
5.2 |
R20 |
90 |
R10 |
5.6 |
R20 |
100 |
R12 |
6.5 |
R20 |
110 |
R12 |
6.5 |
R20 |
125 |
R14 |
7.3 |
R20 |
140 |
R14 |
7.3 |
R20 |
160 |
R16 |
8.1 |
R24 |
180 |
R16 |
8.1 |
R24 |
200 |
R18 |
9 |
R24 |
220 |
R20 |
9.8 |
R28 |
250 |
R22 |
10.6 |
R28 |
320 |
R28 |
13.1 |
R35 |
